Key Features
Built for Big Jobs Drills 1/2″-diameter pocket holes – the larger hole size you need for outdoor builds, deck rails, and wall framing where standard pocket holes won’t cut it. One-Piece Hardened Steel The one-piece, hardened high-speed steel construction means no weak joints or flex points – just consistent, aggressive drilling that holds up under repeated use. Smooth, Fast Drilling Engineered specifically for the Kreg Foreman Pocket-Hole Machine, this bit is optimized to drill cleanly and quickly through 1-1/2″ material without binding or burning.
Overview

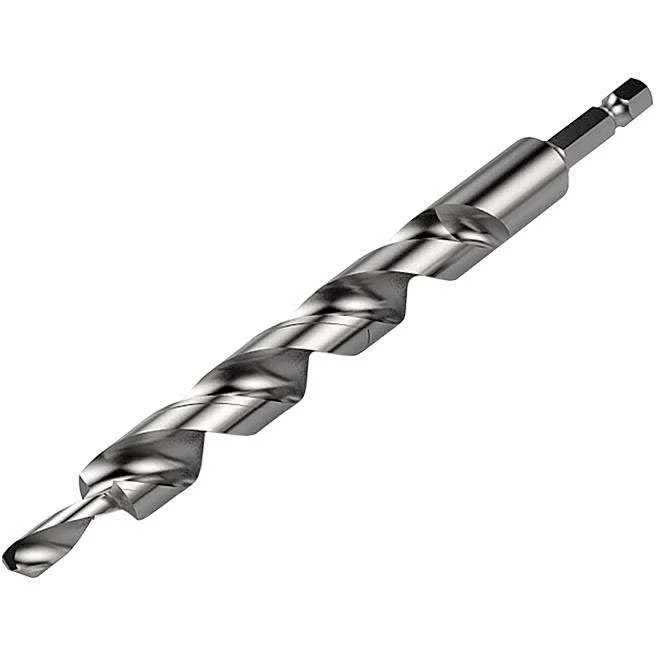

The Kreg Foreman HD Heavy-Duty Drill Bit (Model DB210-HDB) is a replacement pocket-hole drill bit designed exclusively for use with the Kreg Foreman Pocket-Hole Machine (DB210). This is a specialty step drill bit engineered to cut 1/2″-diameter pocket holes – the larger format required for heavy-duty joinery in thicker and harder materials.
Where standard pocket-hole bits drill smaller holes suited to lighter indoor projects, this HD bit opens up the Foreman machine for serious structural work: outdoor furniture that takes a beating, deck railing systems that need real strength, and wall framing where load-bearing integrity matters. If you’re running the Foreman and tackling projects that demand bigger, stronger joints, this is the bit that makes it possible.
The one-piece construction is worth paying attention to. Many drill bits are assembled from multiple components – a potential failure point under heavy use. This bit is machined from a single piece of hardened high-speed steel, which keeps it rigid and accurate even when drilling repeatedly through dense lumber. The result is smooth, fast drilling with no flex and no wobble, which means cleaner pocket holes and longer bit life.
The bit is sold without a drill guide, making it the right choice when your existing guide is still in good shape and only the bit itself has worn out. If you need both the bit and a new guide, Kreg also offers an HD Replacement Bit with Drill Guide separately. The DB210-HDB is sold as a single bit – straightforward, no extras.
This bit is purpose-built for the Foreman machine and is not compatible with other Kreg pocket-hole jigs. If you’re running a Kreg R3, 320, 520, or similar jig, this is not the bit for you. But if you own the Foreman and find yourself drilling heavy-duty joints on a regular basis, keeping a spare DB210-HDB on hand is just good shop practice. Bits wear – having a replacement ready means your machine stays productive instead of sitting idle waiting for a part to arrive.
Kreg Foreman HD Drill Bit – Built for Heavy Work
This is the drill bit that makes the Kreg Foreman capable of true structural-grade pocket-hole joinery. The 1/2″ diameter hole it produces is significantly stronger than a standard pocket hole, giving your joints the holding power needed for outdoor exposure, deck construction, and wall framing applications.
- Drills 1/2″-diameter pocket holes in 1-1/2″ material
- One-piece high-speed steel – no assembled joints to fail
- Hardened steel resists wear during high-volume drilling
- Sold without drill guide – ideal replacement when only the bit is worn
- For exclusive use with the Kreg Foreman Pocket-Hole Machine (DB210)
What’s in the Box
- (1) Foreman HD Heavy-Duty Drill Bit
Drill guide not included. The Kreg Foreman Pocket-Hole Machine (DB210) is sold separately. An HD Replacement Bit with Drill Guide is also available from Kreg if a replacement guide is needed.
Key Specifications
| Pocket Hole Diameter | 1/2 in |
|---|---|
| Overall Length | 2 in |
| Bit Material | High Speed Steel |
| Material Capacity | 1-1/2 in |
| Weight (lbs) | 0.25 lbs |
| Warranty | 1 Year |
Compatibility
Kreg Foreman Pocket-Hole Machine Designed for exclusive use with the Kreg Foreman Pocket-Hole Machine (Item# DB210). This bit is not compatible with other Kreg pocket-hole jigs. HD Replacement Bit with Drill Guide If your drill guide also needs replacing, Kreg offers an HD Replacement Bit with Drill Guide as a separate accessory for the Foreman machine.
Built For
Outdoor Furniture Building Deck Rail Construction Wall Framing Heavy-Duty Pocket-Hole Joinery Woodworking Construction Carpentry Remodeling
Pro Tip
Keep a spare DB210-HDB on the shelf before you need it. On a big framing or decking job, a worn bit mid-project means downtime waiting for a replacement to ship – the bit is inexpensive enough that having one in reserve is an easy call.
Warranty & Support
The Kreg DB210-HDB is backed by a 1-year manufacturer’s warranty against defects in materials and workmanship.
Tool Nut’s Take
Tool Nut’s Take
The Right Bit When Your Foreman Is Doing Real Work
The Kreg DB210-HDB isn’t a glamorous purchase, but it’s the one that keeps your Foreman Pocket-Hole Machine doing what it’s built for – heavy-duty joints that actually hold.
- Who it’s for: Foreman machine owners tackling outdoor builds, deck construction, wall framing, or any project where standard pocket holes aren’t enough.
- Why it stands out: One-piece hardened high-speed steel construction drills clean 1/2″ pocket holes without flex or premature wear – this isn’t a budget replacement bit.
- Worth knowing: This bit is sold without the drill guide – if your guide is also worn, grab the HD Replacement Bit with Drill Guide version instead. And remember: this only works with the Kreg Foreman (DB210), not any other Kreg jig.
Common Questions
- Will this bit work with my Kreg Jig 320 or 520? No. The DB210-HDB is designed exclusively for the Kreg Foreman Pocket-Hole Machine (DB210). It is not compatible with other Kreg jigs.
- Does this come with a drill guide? No, this bit is sold without a drill guide. If you need a replacement guide as well, Kreg offers an HD Replacement Bit with Drill Guide as a separate item.
- What material thickness does this bit handle? The DB210-HDB is designed to drill pocket holes in 1-1/2″ material.
- What size pocket holes does this bit create? It drills 1/2″-diameter pocket holes, which are larger than standard pocket holes and suited for heavy-duty structural applications.
