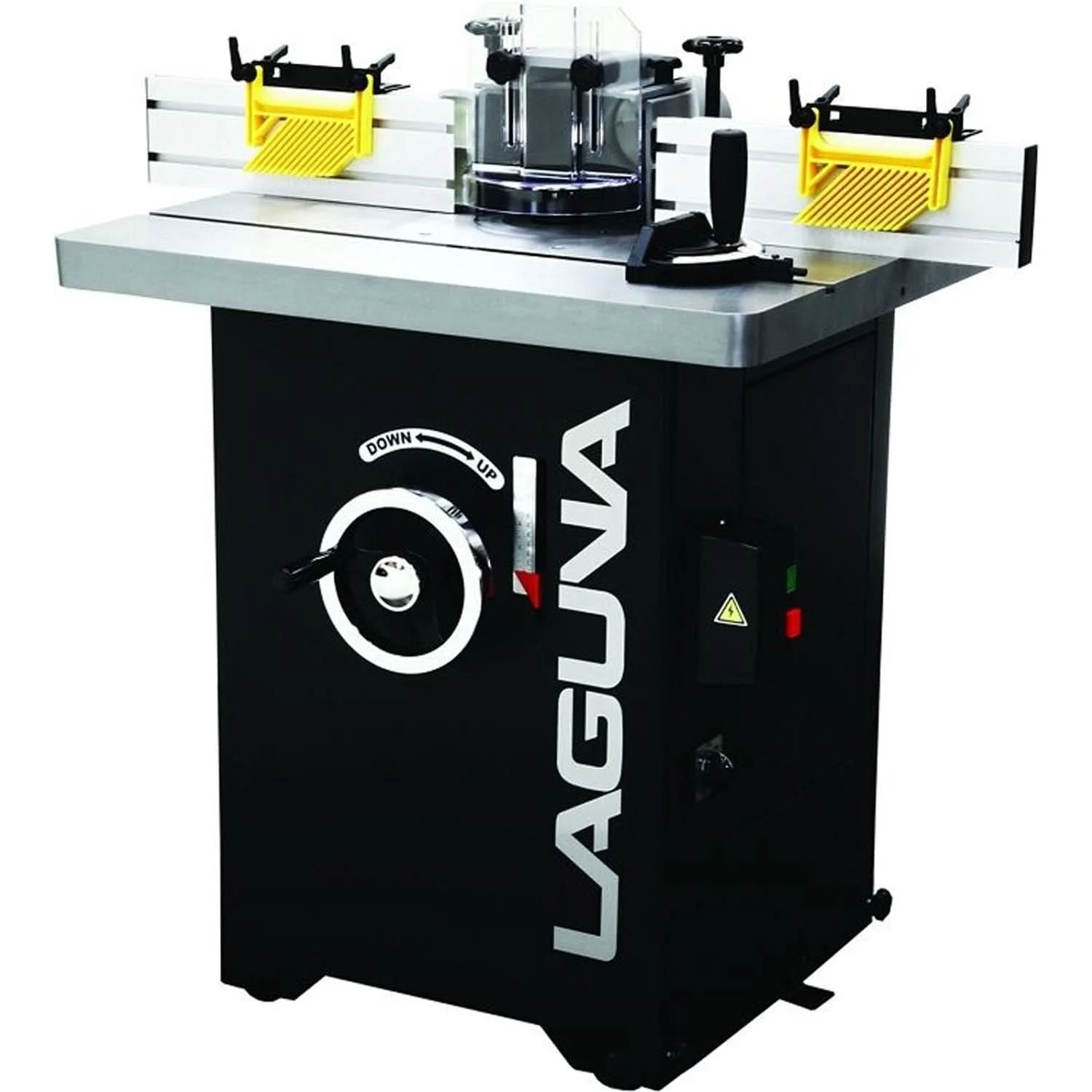

LAGUNA MSHAP4SPD-3-0130 Compact Shaper – 4 Speed 3HP 1 Phase

Key Features

4 Working SpeedsThe Laguna Compact Shaper 4 Speed gives you 4 spindle speeds from 4,000 to 10,000 RPM, so you can match cutter size and material instead of forcing one setup to do everything. Smoother Power TransferThe flat poly-groove belt is built to transfer power with less vibration. That matters when you want a cleaner cut and a machine that feels steadier during long routing and profiling runs. Fence ControlA micro-adjustable fence, spindle lock, and forward/reverse rotation give you more control over setup changes, cutter alignment, and edge work without wasting time between operations.

Overview

The Laguna MSHAP4SPD-3-0130 Compact Shaper 4 Speed is a stationary woodworking shaper built for edge profiling, cope-and-stick work, raised panel setups, and other precision stock shaping jobs. This is a shaper designed for professional woodworking and serious shop use. Model Number: MSHAP4SPD-3-0130. If you need more cutter flexibility than a basic router table can offer, this machine gives you the spindle capacity, table support, and speed range to handle heavier shaping work with more control.

A big reason this machine stands out is the usable speed range. With spindle speeds of 4,000, 6,000, 8,000, and 10,000 RPM, you can set the machine around the cutter and the cut quality you need. That matters when you move between larger shaper cutters and router-bit work. Instead of being locked into one compromise speed, you can run the setup that makes sense for the profile, stock, and finish you are after.

The spindle setup is equally practical. Laguna includes 3/4 inch and 1-1/4 inch spindle sizes, along with 1/4 inch and 1/2 inch router collets. That gives this woodworking machine more range inside one footprint, whether you are running dedicated shaper tooling or integrating router bits into specific operations. The 4 inch spindle travel and 4 inch capacity under nut add to that flexibility when you need to dial in stack height and cutter position.

On the work surface side, the 32 inch x 26-1/2 inch table gives you a stable platform for guiding material accurately, especially on longer parts or wider components that would feel sketchy on a smaller machine. The machine also uses a micro adjustment on the fence, which is one of those features that saves real setup time. Fine fence movement makes it easier to sneak up on a finished profile instead of overshooting the cut and starting over.

Laguna also built in several details that make day-to-day operation easier. The easy spindle lock helps speed up tooling changes. Forward and reverse rotation expands how you approach certain cutter and feed-direction needs. The flat poly-groove drive belt is there for a reason too: better power transfer with less vibration. In a machine like this, reduced vibration is not just about comfort. It can help with surface quality, confidence at the fence, and overall feel during extended runs.

For shop practicality, the Laguna MSHAP4SPD-3-0130 Compact Shaper 4 Speed includes a 4 inch dust port and a built-in wheel system. Dust collection matters on a shaper because chips can pile up fast around the cutter area and fence. The wheel system matters because a 450 lb machine is great for stability, but not fun to relocate unless the base is designed for it. Laguna clearly expected this machine to live in a real shop where floor space and machine placement matter.

This shaper is a strong fit for cabinet shops, millwork operations, furniture builders, and serious woodworkers who need more than occasional edge routing. It is also a smart option for users stepping up from a router table and wanting more spindle options, more table support, and more consistent control on heavier profiles. If your work includes repeated shaping, joinery-related profiles, or production-minded edge work, this machine earns its footprint.

Built for Real Shop Work

This is the kind of shaper you buy when small-table routing starts limiting the work you can take on. The large table, fence control, and multiple spindle options make it easier to run accurate profiles on real stock, not just short trim pieces.

• 32 inch x 26-1/2 inch table supports larger workpieces more confidently
• Built-in wheels help move a 450 lb machine when shop layout changes
• Forward/reverse rotation and spindle lock simplify setup changes

Key Specifications

Motor	3 HP, 1 Phase, 220 Volt, 60 Hz
Spindle Speeds	4,000 / 6,000 / 8,000 / 10,000 RPM
Table Size	32 in x 26-1/2 in
Spindle Travel	4 in
Capacity Under Nut	4 in (with 1-1/4 in spindle)
Spindle Sizes Included	3/4 in and 1-1/4 in
Router Collets Included	1/4 in and 1/2 in
Dust Port Diameter	4 in
Table Opening Diameter	6-1/4 in
Table Insert Opening Diameter	2-1/2 in and 4-5/16 in
Fence Size	4-13/16 in x 16 in
Weight	450 lbs
Made In	United States

Compatibility

Spindle OptionsIncludes 3/4 inch and 1-1/4 inch spindles for shaper cutter setups that match those spindle sizes. Router Bit SupportIncludes 1/4 inch and 1/2 inch router collets for router-bit use where that tooling fits the included collet sizes. Dust CollectionUses a 4 inch dust port, making it suitable for shop dust collection setups built around standard 4 inch hose connections.

Built For

Woodworking Cabinet Shops Millwork Furniture Building Edge Profiling Raised Panel Work Cope-and-Stick Setups Production Shaping

Warranty & Support

1 Year Limited warranty.

Tool Nut’s Take

Tool Nut’s Take

Laguna MSHAP4SPD-3-0130 Compact Shaper 4 Speed Is the Right Step Up from a Router Table

This machine makes sense for woodworkers who need more cutter range, more table support, and more control than a light-duty setup can give them.

• Who it’s for: Cabinetmakers, millwork shops, furniture builders, and serious woodworking users doing repeat shaping work.
• Why it stands out: Four spindle speeds, included spindle sizes and router collets, a micro-adjust fence, and a poly-groove belt that aims at smoother power transfer.
• Worth knowing: This is a 220V, 1-phase stationary machine that weighs 450 lbs, so plan your shop power and placement before it shows up.

Common Questions

• What type of machine is this? This is a woodworking shaper designed for edge shaping, profiling, and heavier cutter work in a shop environment.
• Does it support more than one spindle speed? Yes. It has four spindle speeds: 4,000, 6,000, 8,000, and 10,000 RPM.
• Can it use router bits? Yes. Laguna includes 1/4 inch and 1/2 inch router collets.
• Does it have forward and reverse rotation? Yes. The machine supports forward and reverse rotation.
