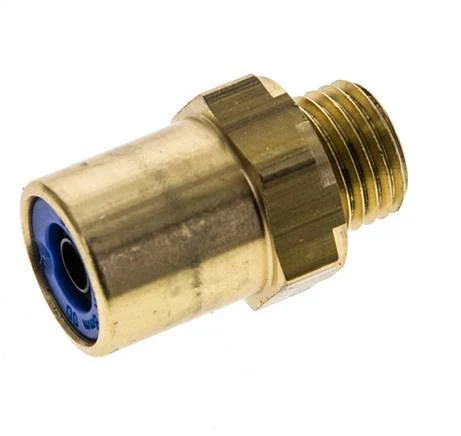

Composite push-in coupling for 8×1 mm polyamide tubing with M14x1,5 male metric thread connection. Parallel thread with O-ring seal. Length: 24 mm. Hex: 20 mm. Weight: 33 g. Designed for polyamide tubing in compressed air circuits on commercial vehicles. Max. operating pressure: 12.5 bar. Temperature range: -40°C to +100°C.
Specifications
Thread : M14 x 1.5
Tube outer diameter : 8×1 mm
Connection type : Outer thread metric
Shape : Straight
With drain : No
