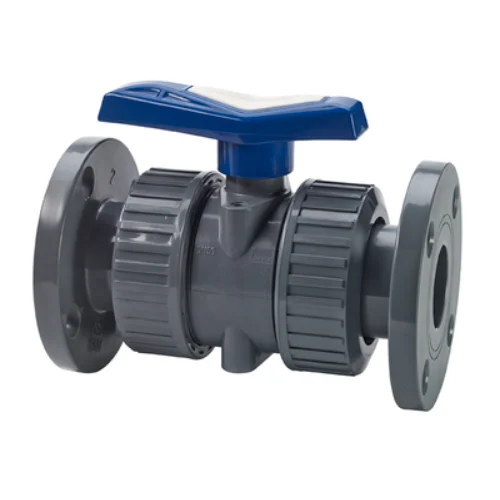

Simtech, TBB 302 6 012, TBB Series, 1-1/4″ CPVC/FPM True Union Ball Valve Flanged
All ball valves are constructed of the materials indicated. Valves are manufactured with an adjustable carrier, threaded into the body to ensure the valve is blocking in both directions. The valve stem is a safety shear stem with double O-ring seals. The body have unions on both ends and the handle incorporates a spanner for adjusting and removing the carrier, PTFE seat is energized by O-ring, the ball shall be machined and tumbled to ensure roundness, as manufactured by SIMTECH.
Features:
- Full port
- Bidirectional flow
- Low maintenance and extended operational life
- Handle equipped as a spanner device to adjust the carrier
- PTFE seat energized by O-ring
- Ball machined and tumbled to ensure roundness
- Special mounting pads are molded on the body for actuator mounting or valve anchoring
- Blowout proof stem
- Safety shear stem design
- Double O-Ring Seal on Stem
Technical Details
| Hole Size (in) | 0.630 |
| d (in) | 1.181 |
| d2 (in) | 3.228 |
| D (in) | 4.606 |
| D1 (in) | 3.504 |
| F (in) | 1.9 |
| H1 (in) | 2.953 |
| H2 (in) | 1.535 |
| L (in) | 7.480 |
| L1 (in) | 3.465 |
| L2 (in) | 5.000 |
| M (in) | 8.00 |
| S (in) | 0.433 |
| T (in) | 0.6 |
| Size | 1-1/4″ |
| End Connection | Flanged: ANSI |
| Seals | FPM |
| Seats | PTFE |
| Material | CPVC |
| Pressure Rating | 232 psi |
| Cv | 81 |
| Torque: Operating (lb/in) | 54 |
